Product Details:
|
| Rated Power: | 150W~5000W | Nonimal Resistance Value: | 0.5Ω-100Ω |
|---|---|---|---|
| Tolerance: | ±1% ~ ±10% | Insulation Voltage: | 5KV(50HZ/60HZ) |
| Inductance: | Non-inductive | Insulation Resistance: | ≥10MΩ |
| High Light: | 1000W High Power Resistor,10 Ohm J High Power Resistor,Open Helical Wire Wound Resistor |
||
1000W 10 Ohm J High Power Ceramic Tube Wirewound Resistors
Structure:
1. High Power,small size & fast heat dissipation,multi-tap and non-inductive winding are available.
2. Resistors feature nickel-copper, nickel-chrome or stainless steel wire wound in a double helix around the center core, depending on size and model. All have ceramic cores with a spiral groove to grip thecoiled wire. The 90° flat bus style terminals are corrosion resistant stainless steel.Other mounting options are available.
Features:
1. The product has the characteristic with solid structure,small volume and high power.
2. It is an ideal product in high impact and long-term load environment & also be applied to the solution of load banks.
3. The resistance wire of high power resistors select iron chromium aluminum,nickel chromium wire or constantan wire with high temperature resistance, stable electrical performance and small temperature drift coefficient.
Specification:
| Performance Charactertics | ||
| Test | Conditions of Test | Testing Results |
| Resistance Tolerance | Testing Voltage ≤3V,Ambient Temperature 25℃ | B---D---F---G---J--K |
| Temperature Coefficients | R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value |
±100～±250PPM/℃ |
| Rated Load | 40℃,rated voltage,1hour | △R≤±(3％+0.1Ω) |
| Short Time Overload | 5 times rated power for 10s | △R≤±(0.2％+0.1Ω) |
| Dielectric Withstand Voltage |
2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; (with grounding), leakage current 2.5mA ; |
△R≤±(0.1％+0.05Ω) |
| Insulation Resistance | 500V DC | ≥10GΩ1Min |
| Terminal Tensile Strength | 40N | No off |
| Vibration resistance | 1.5mm,10-55-10Hz,each 2hours | No damage,No off |
| Load Life | at rated voltage,90 min "On",30 min "Off" ,total 500hours | △R≤±(3％+0.1Ω) |
| Low Temperature Resistance Testing | store at -65℃±3℃ for 2H | △R≤±(1%+0.1Ω) |
| High Temperature Resistance Testing | store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s | △R≤±(1%+0.1Ω) |
| Non-flammability | 10 times rated power, power on for 5s | without combustion |
Application:
Used in motor starting and speed control,neutral grounding,lighting ballasts,and A.C. compressor buffers.
This resistor can also be used in heating applications.

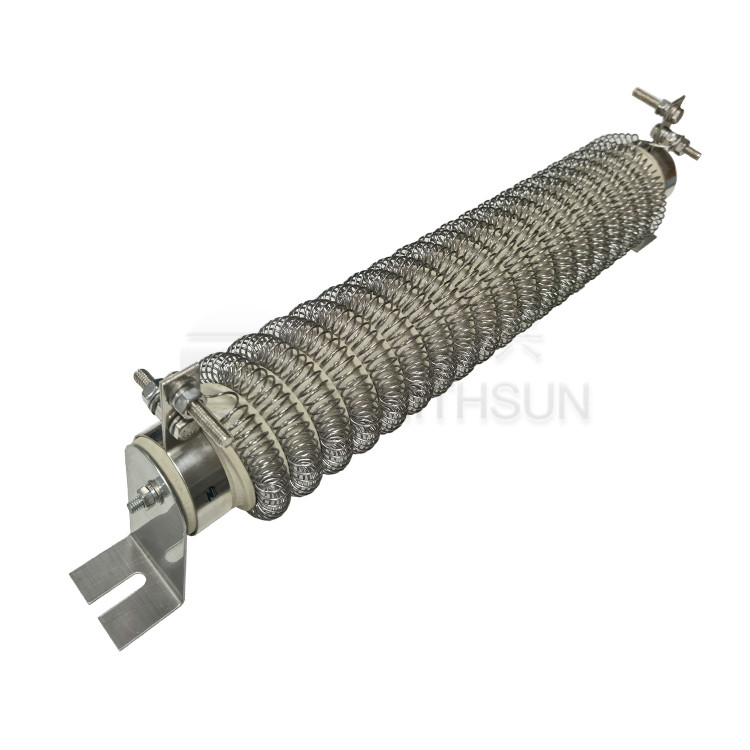

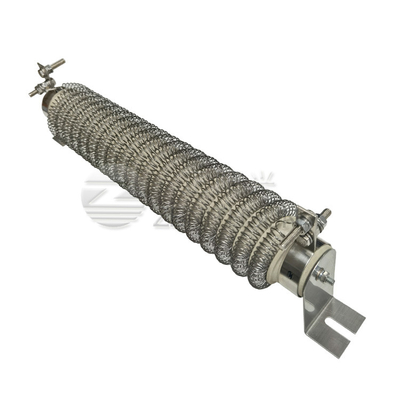

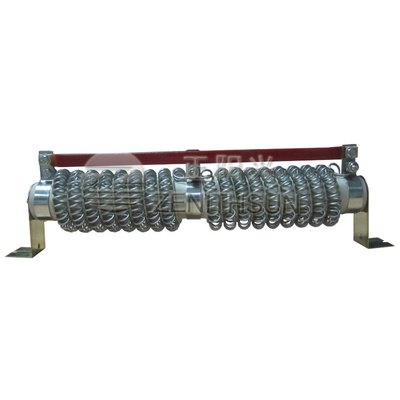

Products Image:
