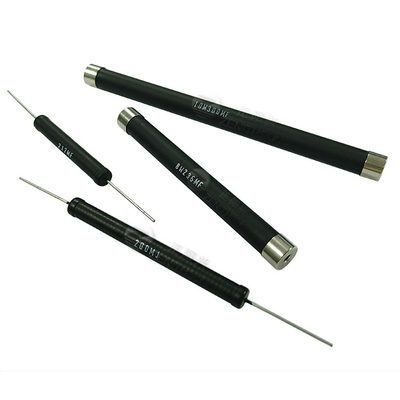

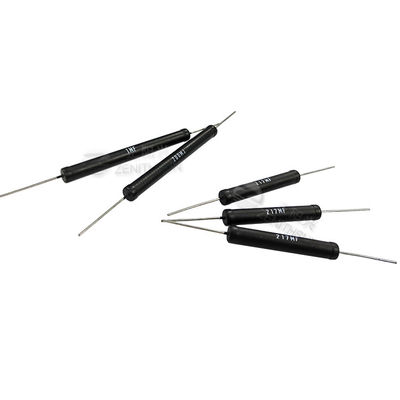

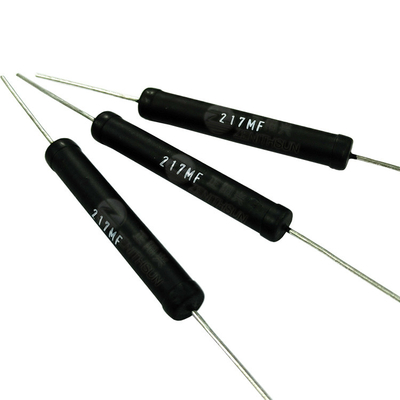

Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive

Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive
Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive
Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive

Large Image :  Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZENITHSUN
Model Number: RI80-RIT
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $2.00 - $50.00/pieces
Supply Ability: 5000 Piece/Pieces per Week
Contact Now

Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive

Description
Application: Medical CT And X-ray Machines Rated Power: 0.8W-6W
Resistance: 10Ω ~1GΩ, 10Ω - 1GΩ Supplier Type: Original Manufacturer
Technology: Thick Film Package Type: Throught Hole
Resistance Tolerance: ±1%,±2%,±5%,±10% Temperature Coefficient: 20PPM-150PPM, 20PPM-150PPM
Tolerance: ±1%,±2%,±5%,±10%
High Light:

0.8W High Voltage Resistor

,

20PPM High Voltage Resistor

,

0.8W Non Inductive Resistors

Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive



0.8W-6W High Voltage Thick Film Non-Inductive Precision Resistors


Structure





1. Screen printing ,resistor film printed layer with thickness of tens of microns,sintered at high temperature.The matrix is 95% aluminum oxide ceramic, with good thermal conductivity and high mechanical strength.The resistor film with precious metal ruthenium slurry, with stable electrical properties.
2. Technological Process: electrode printing → electrode sintering → resistor printing →resistor sintering → medium printing →medium sintering, then resistance adjustment, welding, encapsulation and other processes.


rated power

0.8w-6w

resistance

1-1GΩ

tolerance

±1%,±2%,±5%,±10%

color

Black or customized

temperature coefficient

±150PPM

resistance element

thickfilm

lead material

Gold Plated



Application

Production Time : 2-3 weeks . Widely used in high voltage power equipment, medical CT and X-ray machines, high voltage testing equipment, high voltage power supply, vacuum equipment, high voltage frequency converter, voltage divider, high voltage circuit, capacitor discharge circuit,high voltage buffer circuit, environmental protection equipment, electrostatic dust removal equipment,power system, high voltage instruments and meters, pulse modulator, imaging equipment, impulse voltage generator, etc .
Product Advantage
Product Details
Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive 0






Features

1.Work under continuous high voltage environment. 2.Power Range :0.8W-6W . 3.Non-Inductive,Resistance-high voltage,small size,high power,long life,Moisture Resistance ,High Stability. 4.Lead Material:copper,tin-plated.
Product Dimension


Precision 0.8W 6W High Voltage Resistor Thick Film Non Inductive 1


Shipping

1. By courier,such as DHL,FED-EX,UPS,etc,it is door to door, usually 3-4 day to arrive;
2. By air to the airport,usually 5-7 days to arrive;
3. By sea to sea port,usually 15-30 days to arrive;

If you delivery time is very urgent, we suggest you choose by courier or by air.
If it is not very urgent,we will suggest you choose by sea,it is very cheap.
For more details,please contact with us.
